Marsboard RK3066 Feature

Hardware specification

CPU Rockchip RK3066 ARM Cortex-A9 Dual-Core @ 1.6Ghz
GPU ARM Mali400MP4 Complies with OpenGL ES 2.0/1.1
Memory (SDRAM) 1GB DRAM, up to 2GB DRAM
Onboard Storage 4GB Flash, SD (Max. 64GB) / MMC card slot
Onboard Network 10/100 Ethernet RJ45, USB WIFI
Video Outputs HDMI, LCD-RGB
LCD LCD Connector(Capacitive touch)
Remote IR
Power Supply Requires regulated 5VDC 2A power supply with a 5.2mm(ext. diameter) x 2.1mm (int. diameter) barrel plug. Extra power Supply for HDD
USB 2.0 Ports 4 x USB 2.0 Host, 1 x USB 2.0 OTG
Buttons VOL+ (recovery), VOL-, ESE, Power
Audio Output 3.5 mm Jack and HDMI
Sound Input 3.5 mm LineIN Jack and MIC
Camera Input

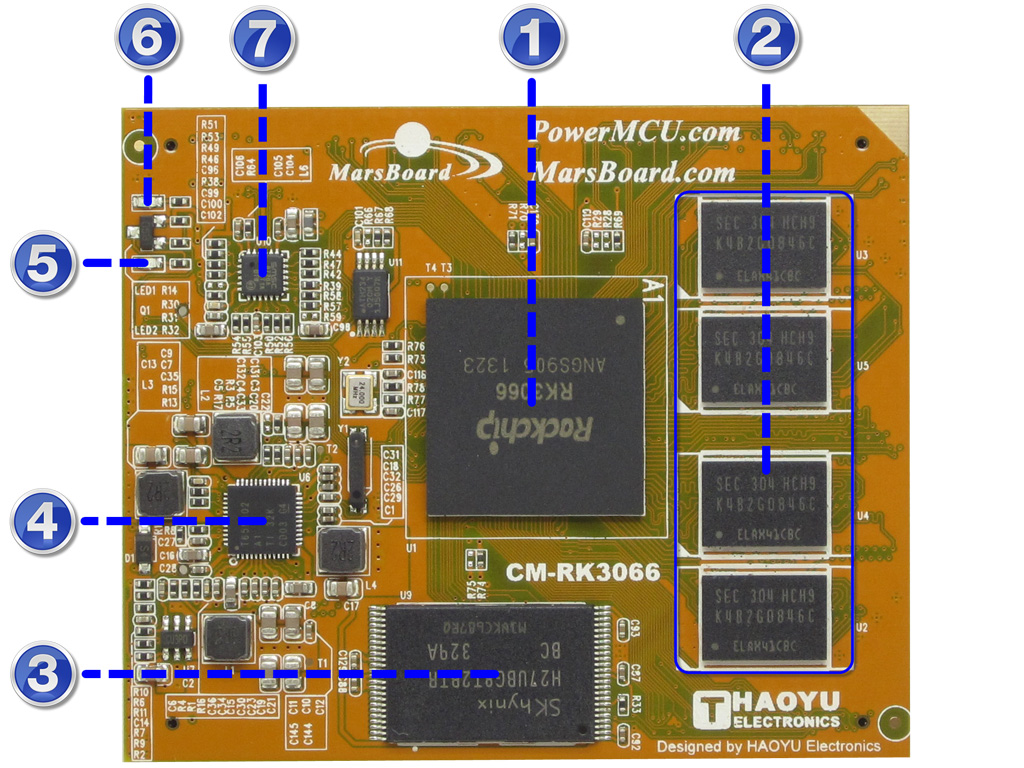

  1. Rockchip RK3066 ARM Cortex A9 Dual-core @ 1.6Ghz + Mali-400 GPU
  2. 1GB DDR3 SDRAM, up to 2GB DDR3 SDRAM
  3. 4GB Nand Flash & eMMC FLASH
  4. Power Management Unit - TPS659102
  5. Power Indicator LED
  6. TX indicator LED use for debug
  7. 10/100M Ethernet PHY - LAN8710A

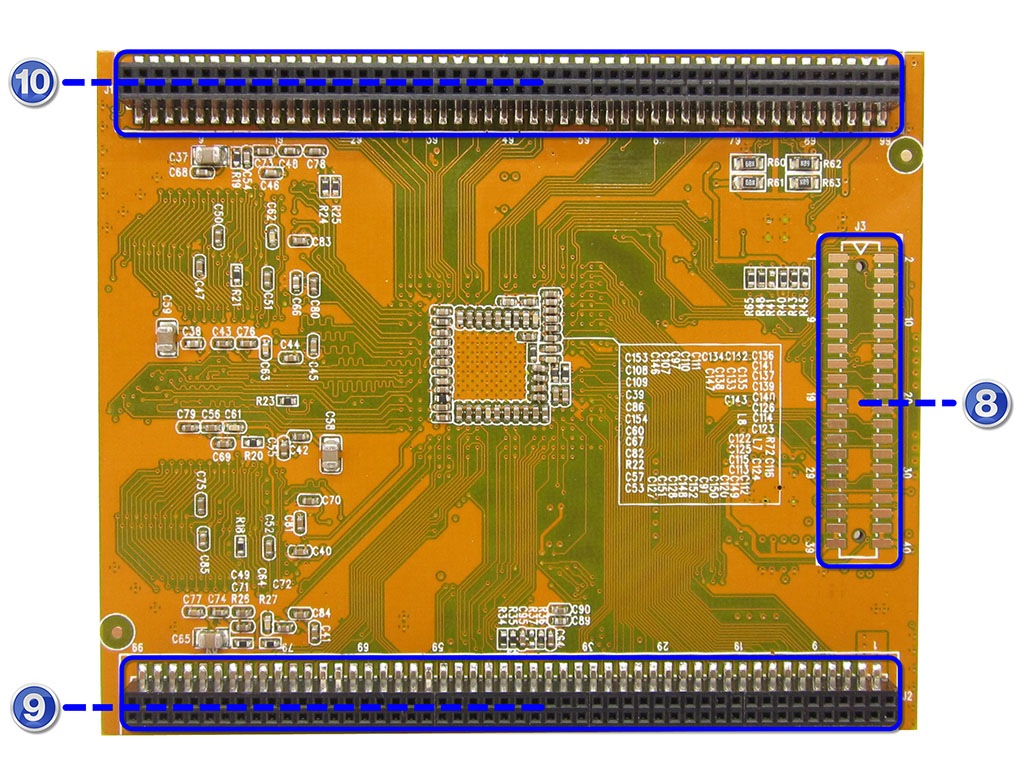

  8. J3, expansion 20x2 pin 1.27MM
  9. J2, expansion 50x2 pin 1.27MM
  10. J1, expansion 50x2 pin 1.27MM
  1. HDMI A Type socket
  2. Audio Codec IC - ALC5631Q
  3. Mrcro SD card (TF card)socket
  4. Audio HPHONE Output
  5. Speaker Output
  6. MIC input (No welding Microphones)
  7. USB to UART, CP2102
  8. USB Debug port
  9. USB-OTG Port
  10. EXT connector
  11. IR Receiver - not soldered
  12. Power Supply - 5V/2A
  13. 2 x USB 2.0 Host port
  14. CR1220 RTC Battery Holder
  15. 2 x USB 2.0 Host port
  16. RJ45 10/100M Ethernet
  17. USB 2.0 Host IC - FE1.1S
  18. Ext Port - Camera CIF port
  19. VOL + (Recover Key), VOL -, ESC, Power KEY (from left to right)
  20. LCD RGB Interface
